Unit Load Devices

Royal Jordanian's wide range of ULDs ( Unit Load Devices ) ensures your air cargo is moved safely, smoothly and quickly.

Base Dimension Outside 156 x 153 cm
Height Outside 114 cm
Usable Volume 3.50 cbm
Inside Dimensions 146 x 144 x 111cm
Accepted for A321, A320, A319
Tare Weight 85kg
Max Gross Weight 1134kg
Base Dimension Outside 156 x 153 cms
Height Outside 163 cms
Usable Volume 3.80 cbm
Inside Dimensions 146 x 144 x 160 cms
Accepted for A340, A310, A310F
Tare Weight 85kg
Max Gross Weight 1588KGs
Base Dimension Outside 318 x 224 cms
Usable Loading Area 304 x 210 cms
Accepted for A340, A310, A310F, B737
Tare weight (including net) 115kg
Gross Weight 6804KG

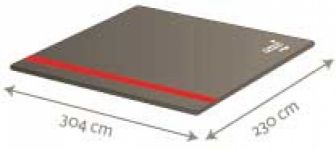

Dimensions 318 x 244 cms
Usable Loading Area 304 x 230 cms
Accepted for A340, A310, A310F
Tare Weight (including net) 115kg
Max Gross Weight 6804KG
Dimensions 498 x 244 cms
Usable Loading Area 488 x 234 cms
Accepted for A310 Cargo freighters only
Tare Weight (including net) 400kg
Max Gross Weight 10.450 KG

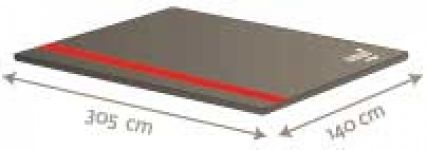

Dimensions 318 x 153 cms
Usable Loading Area 305 x 140 cms
Accepted for A340, A310,A310F
Tare Weight (including net) 90kg
Max Gross Weight 3175 KG
Dimensions 156 x 153 cms
Usable Loading Area 150 x 146 cms
Accepted for A321,A320, A319
Tare Weight (including net) 80 kg
Max Gross Weight 1134 KG
Dimensions 318 x 244 x 163 (405cm as a max Length)
Usable Loading Area 305 x 234 x 160cm
Accepted for A340, A310, A310F
Tare Weight (including net) 315 kg
Max Gross Weight 6804 KG
Dimensions 318 x 224 x 163( 405 cm as a Max Length)
Usable Loading Area 305 x 210 x160 cms
Accepted for A340, A310, A310F
Tare Weight (including net) 315 kg
Max Gross Weight 6804 KG
 Tare Weight Container
500.001-000 817 kg 1,801 lbs
500.001-600 875 kg 1,929 lbs



 General Cargo
Max Gross Weight 6,804 kg 15,000 lbs
Max Height Centre of Gravity 1,219 mm 48.0 inches



 Outside Dimensions (max)
Height 2,429 mm 95.6 inches
Width 2,438 mm 96.0 inches
Depth 3,175 mm 125.0 inches



 Dimension Ramp/Cargo Door (aft, front)
Height 1,313 mm 51.7 inches
Width 1,630 mm 64.2 inches

The container is certified for the following maximum loads (NAS 3610-2M2C):

Load Case Pounds (lbs) Kilogram (kg) N
Forward/aft* 22,500 10,206 100,121
Sideward* 22,500 10,206 100,121
Upward 38,000 17,237 169,093
Downward 76,500 34,700 340,411
*In combination with a down load equal to the forward load.
